NISSAN S-CHASSIS MANTIS ANGLE KIT

NISSAN S-CHASSIS MANTIS ANGLE KIT

$1,527.18 USD
$1,527.18 USD
Sale Sold out
MODEL
Color
DO YOU HAVE RELOCATED RACK?

The Nissan S13/S14/S15 Mantis Angle kit is engineered for optimal handling performance while drifting. It features fully fabricated knuckles and arms constructed from high-strength alloy using a tab-and-slot design, ensuring robust welds and connections among all components. Additionally, the kit is designed to be on-car adjustable, allowing all adjustments for caster, camber, and toe to be made without removing any parts.

Key Features:

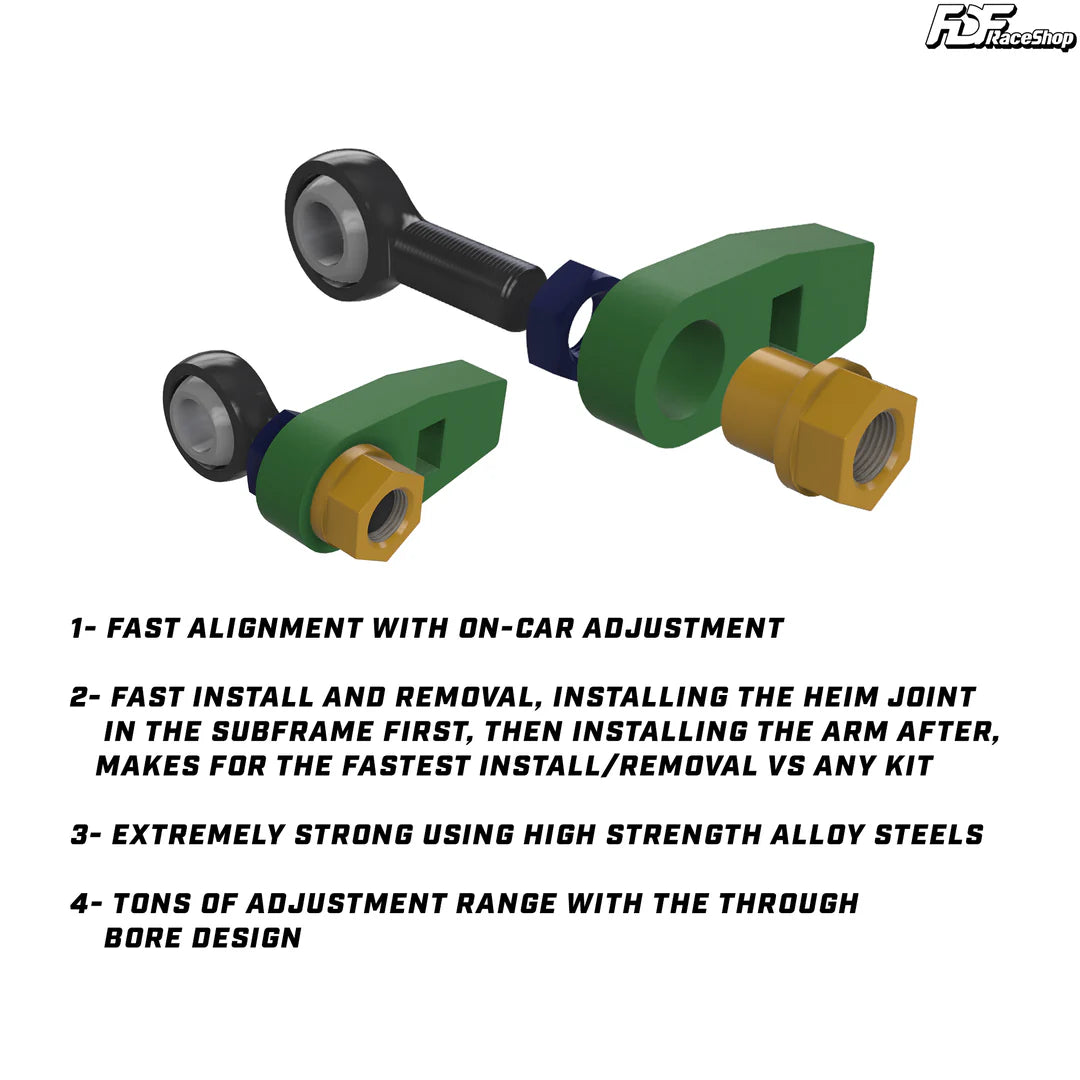

  • Adjustability: Our innovative lower control arm design introduces on-car fine-tuning for caster and camber.
  • Angle: 70+ degrees depending on your steering rack setup.
  • Ackermann: Adjustable Ackermann.
  • Roll Center: Optimized handling by adding 50mm of roll center correction.
  • Bump steer: Minimal bump steer in drift by perfecting tie-rod pickup location.
  • Caster: Displaced caster built into the knuckle for optimal alignment force.
  • Camber: Optimized camber ranging from adjustable from -3 to -6.
  • Track Width: 50-75mm wider per side creating a stable and high clearance front end. (Recommend front over fenders).
  • Suspension Travel: Long travel range, full lock to full lock at any point throughout suspension travel for increased grip.
  • Joints: Chromoly Heim joints, and spherical bearings with self-lubricating nylon race, easily replaceable.
  • Durable & Reliable: High Strength Alloy Steel and Aluminum is used throughout all components.

Choose the options according to your preferences or send us an email if you need help deciding sales@fdfraceshop.com.

Included:

  • 2 lower control arms
  • 2 knuckles- Ackerman Plates
  • 2 inner and outer tie-rods
  • 2 caster/camber plates

FDF updates to the kit include:

  • 1 piece LCA with on-car adjustment at all points
  • Uniball bearing on the outer ball joint
  • Knuckle with interchangeable spacers to use on s13/14/15 coilovers
  • Integrated bump stop on the knuckle for fine-tuning your angle limit

All hardware required for install included.

Note: Must have coilovers to run this kit.

Note: Wheel bearing not included.

Note: If you choose to run the Z32 caliper with the 350Z bearing option, the caliper may require some minor grinding to clear the bearing due to its size.

Note: For custom colors, choose one from Prismatic Powders. Please list the item code and name within the order notes.

Note: Orders require 2–3 weeks for fabrication before shipping.

Installation Manual

Installation Manual (350z Hub)

Why Choose FDF?

  • Driver-inspired designs: Our products feature innovative, driver-inspired designs tailored for performance and style.
  • High-quality materials: We use only high-strength alloys to ensure the durability and superior quality of our products.
  • Made in North America: Our products are proudly made in-house in North America, ensuring exceptional craftsmanship and reliability.
